SL29 Solar 5W/15W/20W/30W/40W LED Area Light (With Pole)

  • Product Code: SL29-Solar-Street-Parking-Lot-Light
  • Availability: In Stock - Call To Order
$699.99
    PDF Data

This all-in-one solar street light is available as five different versions. Choice of 5 Watt (550 Lumen), a 15 Watt (1950 Lumen), 20 Watt (2600 Lumen), 30 Watt (3900 Lumens) or a 40 Watt (5200 Lumen) LED lamp. Sold as a complete system. This compact, unique, easy to install LED area lightcan be pole, post or wall mounted. Automatically illuminates at dusk at 33% brightness and reverts to 100% brightness when motion is detected. Four different poles heights available. Prices from $699.99.

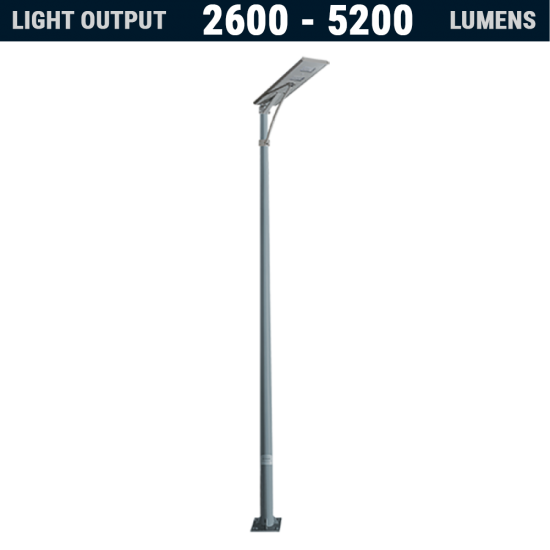

This compact, self-contained light fixture is offered in five different models (5W, 15W, 20W, 30W and 40W). It is supplied with a choice of a 10', 15', 20' or 26' pole depending upon the light fixture model. It consists of a discrete solar panel installed on the top on the fixture, with a lithium battery installed inside, and a cluster of powerful white SMD/LEDs on the under-side of the unit. Also on the under-side of the light is a motion sensor. When it detects activity within the light switches to full brightness mode and when the area is free of activity it will revert back to its ambient mode at approximately 1/3rd power. This all in one light fixture may be a good choice for windy locations based on is compact design. The large version with its 1700/5200 Lumen output makes it the most powerful LED motion detector light on the market. The pole is supplied complete with anchor bolts or J bolts and templates. Choice of three different models. Color of product is gray. Color of light output is white.

Popular Uses


Perfect for small streets, parking lots, open areas, playgrounds, parks, HOA's etc. They can be used to provide general lighting and security lighting around commercial buildings. Small model can be used for residential applications for lighting yards, walkways and driveways.

How to Order
We do not accept credit card payments for this product and for this value. Payment would be via check or bank wire transfer (T/T payment). All orders must be placed in writing (by mail, fax or email) and must include all billing and shipping details, the product number and quantity required. Once we receive your written order or purchase order you will be supplied with a pro-forma invoice which you can check to make sure all the information is correct. You will then be required to make payment, in full, against the pro-forma invoice. Your order will ship only when payment has been received and confirmed cleared. A bank wire transfer is the fastest and easiest way to make payment.

Technical Specifications


Performance
All in one design.
Weather rating is I.P. 65
Ideal operating temperature charging range is 0 deg C. to +60 deg C. (-32 deg F. to +140 deg F.).
Ideal operating temperature discharging range is -20 deg C. to +60 deg C. (-4 deg F. to +140 deg F.). Ideal storage temperature range is 0 deg C. to +45 deg C. (-32 deg F. to +113 deg F.).
Anti-tamper (theft resistant) stainless steel hardware included for pole clamp.
Anti-tamper bolt install/release tool included.

Light Fixture
A passive infra-red motion sensor is built into the fixture on all models.
Motion sensor detection range (at ground level) is up to 20' forward and with a 90 degree detection spread, up to 13' left/right.
The detection range will vary depending upon a few factors including fixture mounting height, local ambient temperature etc.
All SMD/LED's have a color temperature of 6000-6500k.
Zero light pollution.
The 5W model is fitted with multiple SMD/LEDs at 5w power and provides 550 Lumens at full brightness and 180 Lumens in ambient mode.
That is equal to approximately 120 watts of incandescent lighting.
The 15W model is fitted with multiple SMD/LEDs at 15w power and provides 1950 Lumens at full brightness and 650 Lumens in ambient mode.
That is equal to approximately 250 watts of incandescent lighting.
The 20W model is fitted with multiple SMD/LEDs at 20w power and provides 2600 Lumens at full brightness and 900 Lumens in ambient mode.
That is equal to approximately 300 watts of incandescent lighting.
The 30W model is fitted with multiple SMD/LEDs at 30w power and provides 3900 Lumens at full brightness and 1300 Lumens in ambient mode.
That is equal to approximately 400 watts of incandescent lighting.
The 40W model is fitted with multiple SMD/LEDs at 40w power and provides 5200 Lumens at full brightness and 1700 Lumens in ambient mode.
That is equal to approximately 500 watts of incandescent lighting.
These fixtures can typically illuminate continuously for up to 24 hours in ambient mode or up to 12 hours in full brightness mode.
The 5W model is approx. 13" x 9.5" x 2" (33cm x 24cm x 5cm) LxWxD.
The 15W model is approx. 27.5" x 14" x 2" (70cm x 36cm x 5cm) LxWxD.
The 40W model is approx. 45" x 13" x 2" (115cm x 33cm x 5cm) LxWxD.
The 5W model is ideal for lighting up an area approximately 20' x 20' (6m x 6m).
The 15W model is ideal for lighting up an area approximately 50' x 50' (15m x 15m).
The 20W model is ideal for lighting up an area approximately 60' x 60' (18m x 18m).
The 30W model is ideal for lighting up an area approximately 70' x 70' (21m x 21m).
The 40W model is ideal for lighting up an area approximately 80' x 80' (25m x 25m).

Battery
Integral high capacity Lithium battery pack pre-installed.
The system has built-in charge control regulation with over-charge and discharge protection.

Pole
The 10' and 15' pole is made of galvanized steel and supplied with a flat black finish.
The 20' and 26' pole is made of galvanized steel and supplied with a satin gray finish.
The 10' (3 meter) pole is approximately 9.5' (285cm) high and has a welded base plate of approximately 1/3" (8mm) thick and approximately 10" x 10" (25cm x 25cm) square.
The 15' (4.5 meter) pole is approximately 14' 9" (435cm) high and has a welded base plate of approximately 1/3" (8mm) thick and approximately 10" x 10" (25cm x 25cm) square.
The 10' and 15' pole base has four pre-drilled elongated holes 3/4" wide.
The 10' and 15' pole is approximately 3" (76mm) diameter (O.D.) at the top and approximately 4.5" (115mm) diameter at the base.
The 10' and 15' poles are supplied with a rebar/anchor kit is included for installation into wet concrete with nuts, bolts and washers.
The 10' and 15' poles can be fixed to an existing concrete pad using suitable expanding anchor bolts (not included).
The 20' and 26' pole has a square flat base (flat plate) with pre-drilled holes for installation which are approx. 3/4" (20mm diameter).
The 20' and 26' pole has a square base plate which is approximately 12.5" x 12.5" (320mm x 320mm).
The 20' and 26' pole is supplied with J bolts and two templates for setting the fixing bolts into new, wet concrete are included and are approx. 12.5" x 12.5" (320mm x 320mm).
The 20' and 26' pole has a bolt pattern (diagonal distance from one hole center to another) of approx. 12.75" (323mm).
The top of the 20' and 26' pole has an outside diameter of approximately 3" (76mm) and tapers outwards towards the base.
The 20' and 26' pole has a diameter of approx. 6" (150mm) at its base decreasing down to approx. 3" (76mm) at the top.

Solar Panel
The 5W model is fitted with a 7 Watt solar panel.
The 15W model is fitted with a 25 Watt solar panel.
The 20W model is fitted with a 50 Watt solar panel.
The 30W model is fitted with a 60 Watt solar panel.
The 40W model is fitted with a 60 Watt solar panel.

Installation
Short support arm and mounting bracket is included.
The clamp/bracket can be attached to a round pole of 2" diameter up to 3.5" diameter.
The 5W model can be installed up to a height of approx. 10'.
The 15W model can be installed up to a height of approx. 16'.
The 20W model can be installed up to a height of approx. 20'.
The 30W model can be installed up to a height of approx. 23'.
The 40W model can be installed up to a height of approx. 26'.

Remarks


Two year warranty*.
Additionally, unlimited, lifetime technical support is available for all warranty registrations.

Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.

The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.

* View our Terms, Conditions and Polices (including our Returns Policy) for further information.

Solar Lights Data
Price:From $699.99. Lumen Output:Up to 5200 Lumens.
Equivalent Incandescent Wattage:Up to approx. 500 Watts. Approximate Illumination Time:Typically dusk to dawn.
Approximate Illumination Area:5W model up to 20' x 20' (6m x 6m). 15W model up to 50' x 50' (15m x 15m). 20W model up to 60' x 60' (18m x 18m). 30W model up to 70' x 70' (21m x 21m). 40W model up to 80' x 80' (25m x 25m).
Solar Panel Wattage:Up to 60 Watts.
Pole Included:Yes.
